Facts:
Model: 2003 Mitsubishi Lancer Evolution VIII
Engine: 2.0L 4G63T
Transmission: 5-Speed
Color: Apex Silver


Current State of Tune:

Engine:
Wiseco 9:1 forged pistons .020 over
Swain tech gold coat on piston domes
Eagle Rods
PURE competition Cylinder Head
--Ferrea springs/retainers
--Coated Hypertech 1mm over valves
Fidanza Cam Gears
Tomei procam 260 duration 11.5mm lift
Toda timing belt
Balance shafts removed

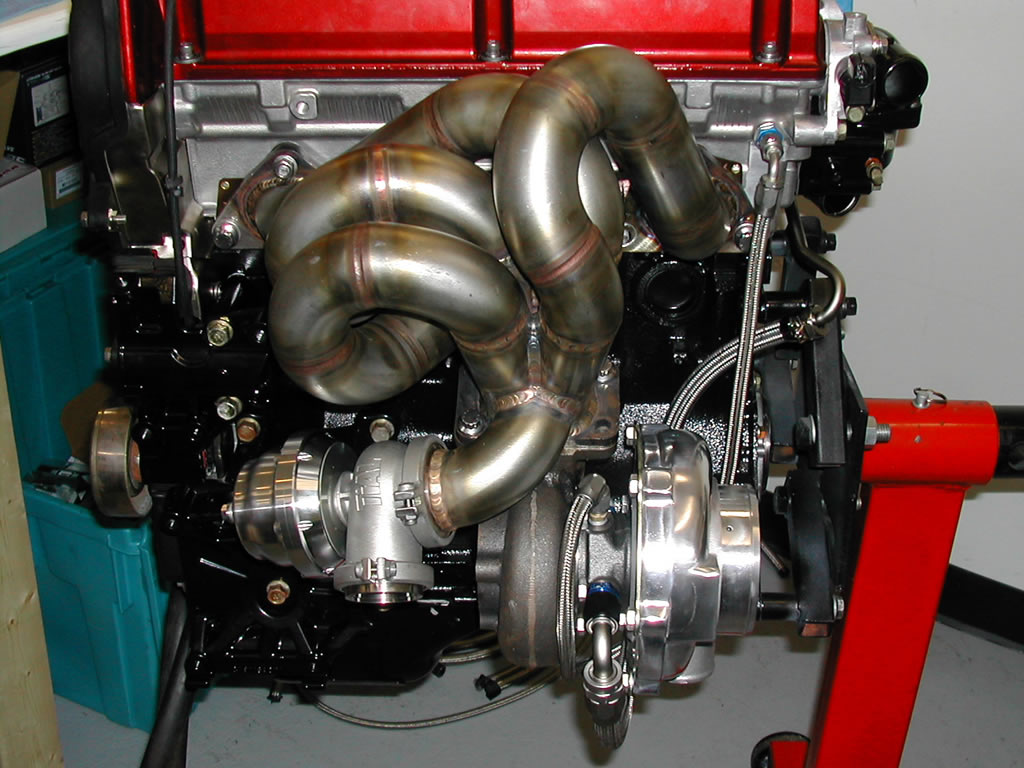

Full Race turbo manifold
Garrett GT35R turbo
TIAL 44mm V-band wastegate
TIAL Blow off valve
Magnus Intake manifold
4" PURE Intake w/ K&N filter
High Flow Fuel Rail
1000cc injectors
Aeromotive Fuel pressure regulator
Aeromotive Fuel Pump
Pure Frount Mount Intercooler and piping
ARC titanium cooling panel
Samco Black Radiator hoses
Pure custom 3" downpipe
Greddy titanium cat back
AEM EMS 30-1313U
--EGT sensor
--Fuel pressure sensor
--Oil pressure sensor
--Oil temperature sensor
--UEGO O2 sensor
--IAT sensor
--5 bar map sensor

Interior:
Autometer dual pod column
DEFI A/F Gauge
DEFI Boost Gauge
Custom 4 point roll bar
RCI Cam-Lock Drivers Harness

Exterior:

Brakes:
EBC Front Rotors
Hawk Race Pads
Earls Stainless Brake Lines

Suspension:
JIC Magic FLT-A2 Coilovers
Cusco 23mm adjustable rear Sway Bar
Perrin adjustable endlinks
Cusco Type I, and Type II Lower bars
Cusco Rear OS-T triangle strut bar
Cusco Trunk bar
Stock front triangle strut tower bar

Transmission:
RPS Carbon - Carbon twin clutch
stainless clutch line
Stainless Scattershield
TRE built transfercase w/ ralliart front diff
Driveshaft shop stage 5 rear axles

Dyno Sheets:
Coming Soon

Best 1/4 mile time:
10.52@139.4

Future Plans:
NX direct port Nitrous system (temporarily removed)
TRE transmission
Custom 6 point Rollcage add on
Piper 290 12mm lift cams
